Soft PVC Compounding

Double stage Extruder Line For Soft PVC

KTE/SE double stage extruder for soft PVC compounding, First stage is twin screw extruder for compounding, second stage is single screw extruder for making pellets. This solution can make soft PVC materials.

Main Applications

- Cable Material

- Shoe Sole Material

- Rain Boots

- Other Soft PVC Application

Advantages of Our Double-stage Pelletizing Line

- Good Dispersion and Compounding

- Easy Solution For Cleaning the Screw

- Uniform and Beautiful End Pellet

- Easy Operation and More Stable

soft pvc pelletizing

Main Technical Parameters

Model

Dia

RPM

L/D

Motor

Output Capacity

TSE/SCE-50/100

TSE-50

21 mm

500

24-48

45 kw

100-350 kg/h

SCE-100

100 mm

85

7-20

30-37kw

TSE/SCE-65/150

TSE-65

62.4mm

500

24-48

75 kw

200-500 kg/h

SCE-150

150 mm

85

7-20

37-45 kw

TSE/SCE-75/180

TSE-75

71 mm

500

24-48

110 kw

 400-800 kg/h

SCE-180

180 mm

85

7-20

45-55 kw

TSE/SCE-95/200

TSE-95

93 mm

400

24-48

200-250 kw

700-1500 kg/h

SCE-200

200 mm

85

7-20

55-75 kw

Cutting Types

There are 5 different cutting types for different application.According to your raw materials, We can customize the best solution for your business.

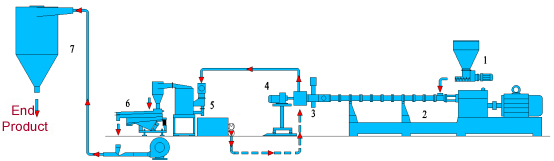

Water-cooling Strands Cutting Type

soft pvc water cooling strands cutting type

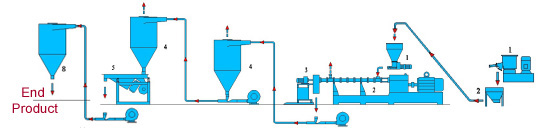

Air-cooling Hot-face cutting type

soft pvc air cooling hot face cutting type

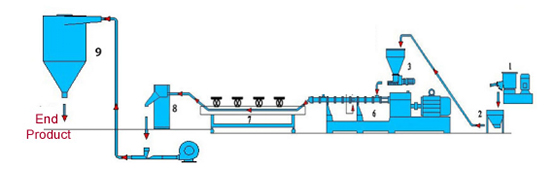

Water-ring Hot-face cutting type

soft pvc water ring hot face cutting type


Air-cooling Strands Cutting type

soft pvc air cooling strands cutting type

Water-flowing Cutting Type
soft pvc water flow cutting type

UnderWater Cutting Type
soft pvc underwater cutting type
