TSE Series Engineering plastic twin screw extruder line mainly used for making engineering plastics such PA, PA66, Glass Fiber, Carbon Fiber, Fire Resistance Agent, Foaming Agent etc. We has full experience in this application, each year we sold more than 30 lines for engineering plastics.
Engineering plastics are widely used application in our life, our engineering plastic compounding extruder line mainly used for making engineering plastics pellets such as fire resistance, fiber glass, carbon fiber etc.
- Good Dispersion and Compounding
- Easy Solution For Cleaning the Screw

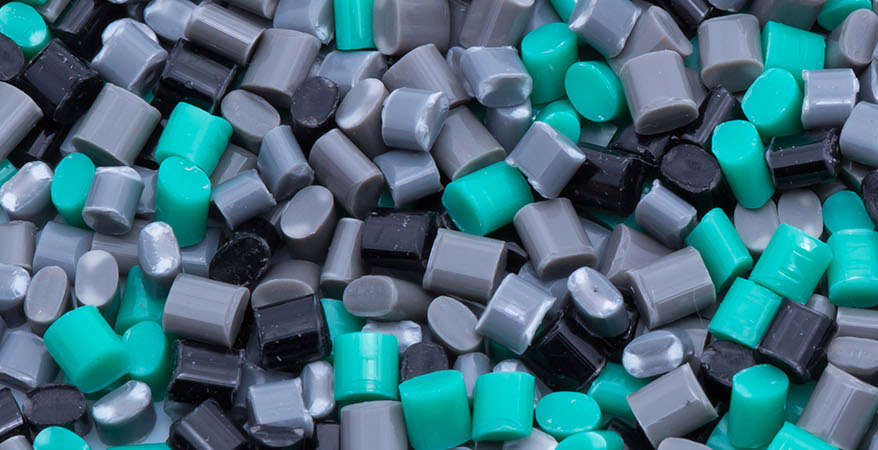

- Uniform and Beautiful End Pellet
- Easy Operation and More Stable
- Main Technical Parameters
|
Model |
Dia |
RPM |
L/D |
Motor |
Output Capacity |
|
TSE-20 |
21 mm |
600/800 |
32-60 |
5 kw |
2-10 kg/h |
|
TSE-36 |
35.6 mm |
600/800 |
32-60 |
18.5/22 kw |
10-100 kg/h |
|
TSE-50 |
50.5 mm |
600/800 |
32-60 |
55/75 kw |
100-350 kg/h |
|
TSE-65 |
62.4 mm |
600/800 |
32-60 |
90/110 kw |
350-500 kg/h |
|
TSE-75 |
71 mm |
600/800 |
32-60 |
132/160 kw |
500-1000 kg/h |
|
TSE-95 |
93 mm |
600 |
32-60 |
250/315 kw |
1000-2000 kg/h |
|
TSE-135 |
135 mm |
600 |
32-60 |
500/900 kw |
3000-5000 kg/h |
There are 6 different cutting types for different application.According to your raw materials, We can customize the best solution for your business.
Water-cooling Strands Cutting Type
Air-cooling Hot-face cutting type
Water-ring Hot-face cutting type
Air-cooling Strands Cutting type
Water-flowing Cutting Type
UnderWater Cutting Type
